Brief Introduction

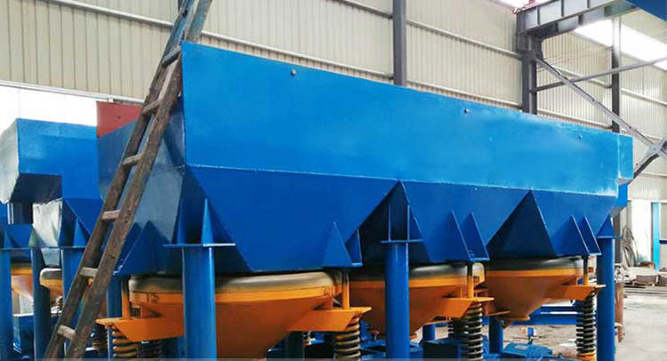

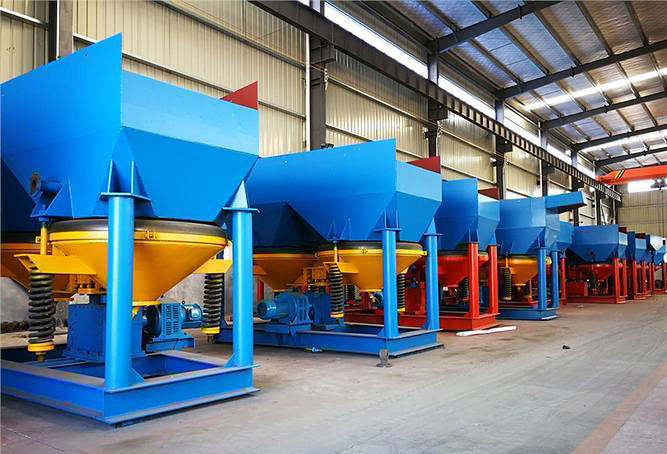

Our Saw-tooth Wave Jig is a new type of energy saving and high efficient gravity separation equipment and developed based on the traditional sine wave jig. The difference between saw-tooth wave jig and sine wave jig is that the pulsation curve for jigging is saw-tooth wave shape, with speedy upward flow and slow downward flow. Bed layer is elevated integrally and slowly dropped with a long effective loose time, allowing significant increase of handling capacity for unit screen surface, decrease of lower limit of grain size recovery and large save of make-up water for under-size fraction.
Advantages and Characteristics
◆ High capacity◆ High concentration ratio and high recovery
◆ Easy to install, operate and maintain
◆ The pulsation curve is saw-tooth wave shape facilitate heavy mineral to settling
◆ Saving water 30-40% than ordinary jig
◆ The pulsation speed very easily adjusted by regulator
◆ Can achieve a good result in processing such as placer gold, tungsten,iron, tin, hematite, copper, tantalum-niobium, titanium, manganese,barite, zirconium, chrome and gemstone etc
