Brief Introduction
Hydraulic radial jig has been widely used as roughing separation equipment to select ore such as alluvial gold, tin, diamond, tungsten,manganese and hematite.

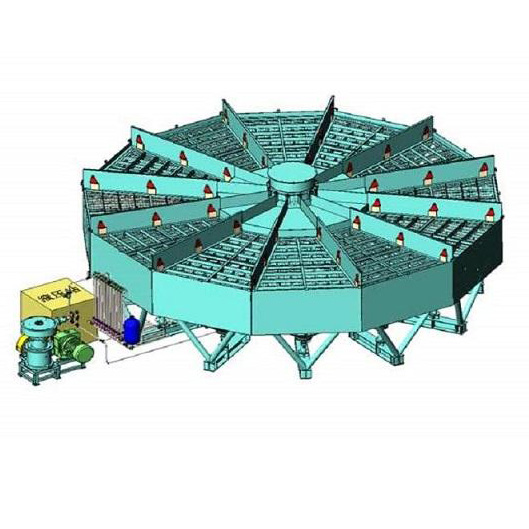

DYTA7750 hydraulic radial jig has many advantages compared with the other jigs: Big jigging area, big capacity; because the jig tank is fanshaped,it is advantageous to recover fine particle materials; Compact structure, central feeding and small distribution space, suitable for use on dredger; Because of the hydraulic drive, the transmission mechanism is simplified and saving power. The total power of the model DYTA7750-9 is only 11.6 Kw, saving about 55% power than the conventional jig machine in the same concentration area. The pulsation curve is approximation saw-tooth curve, not only conducive to recover fine heavy minerals, also saving a large number of make-up water, the make-up water is about a quarter of the ordinary jig.
Advantages and Characteristics
◆ Big capacity, less land occupation, wide recover range on size
◆ High concentrating ratio and high recovery
◆ Easy to install, operate and maintain
◆ The pulsation curve is saw-tooth wave shape facilitate heavy mineral to settling
◆ Saving water 60-70% and saving power 55% than the ordinary jig
◆ The pulsation speed very easily adjusted by the regulator
◆ Can achieve a good result in processing such as placer gold, tungsten, tin, hematite, manganese, barite, and gemstone etc
