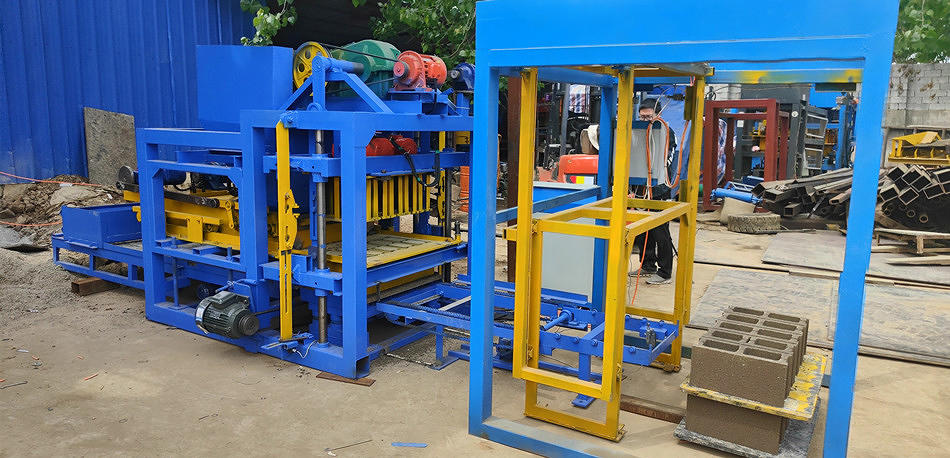

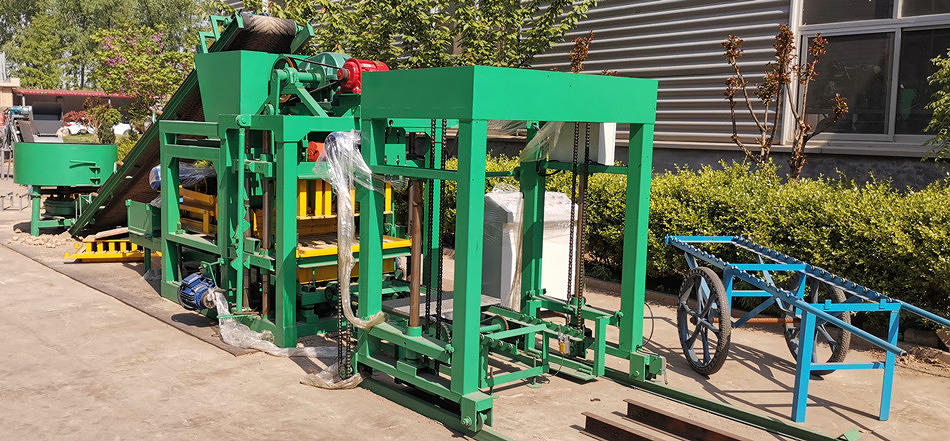

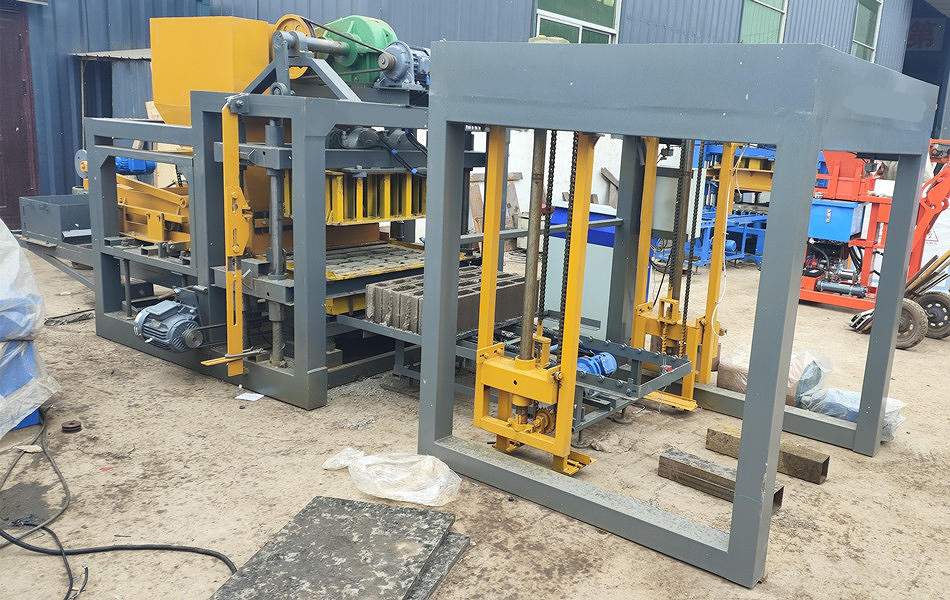

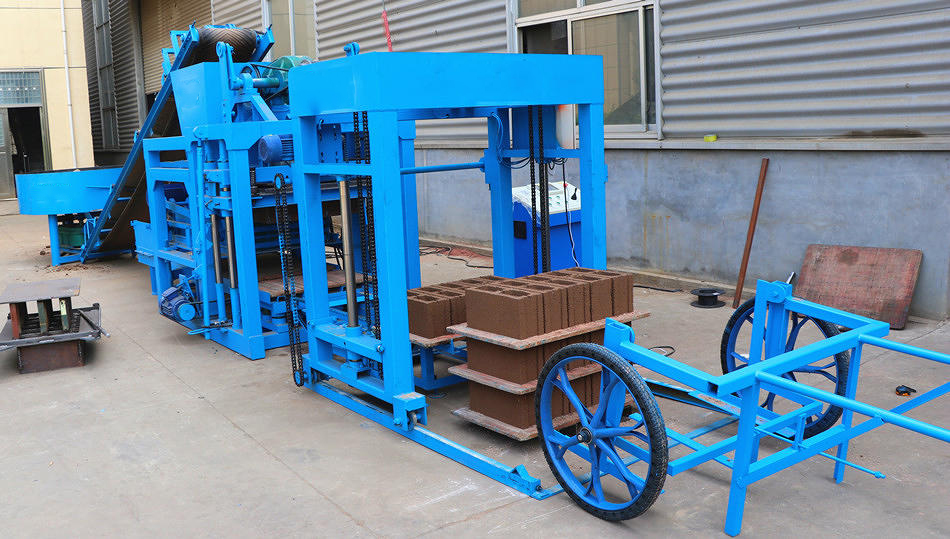

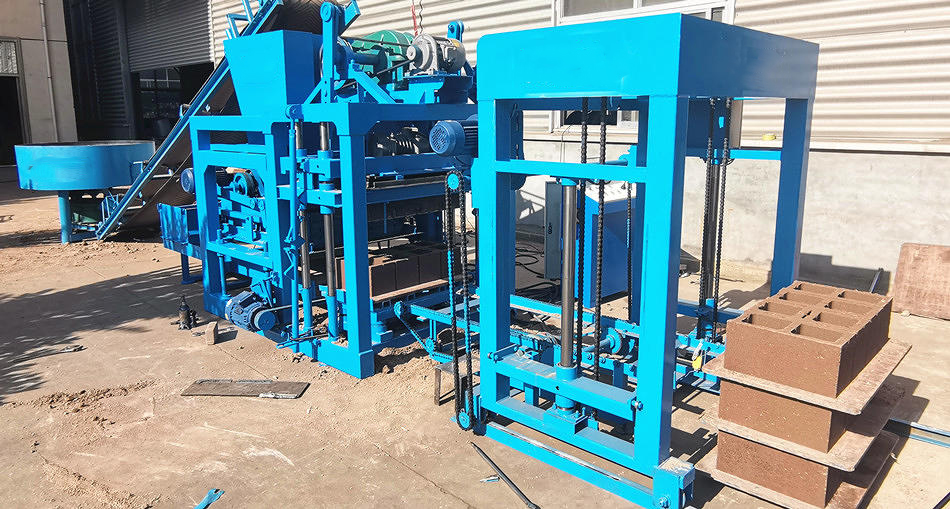

Fully automatic hollow blocks production line machine

Model: OLA-4-25

Share to

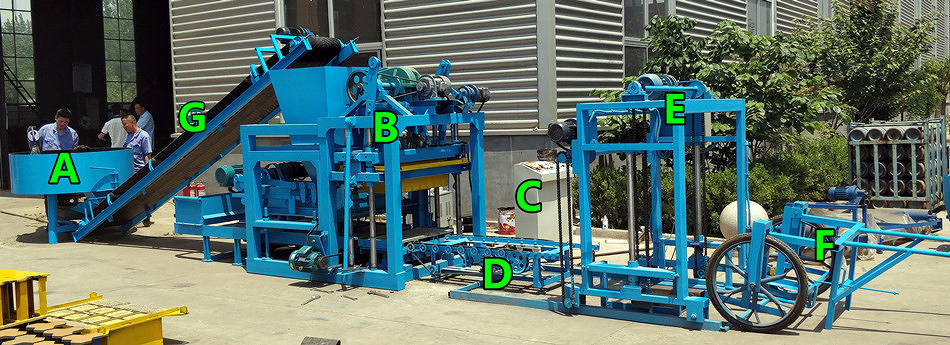

Item  No.  NameFunction
AJQ500 Mixer (One bag cement)Mixing cement, sand, stone powder, flyash.... produce concrete

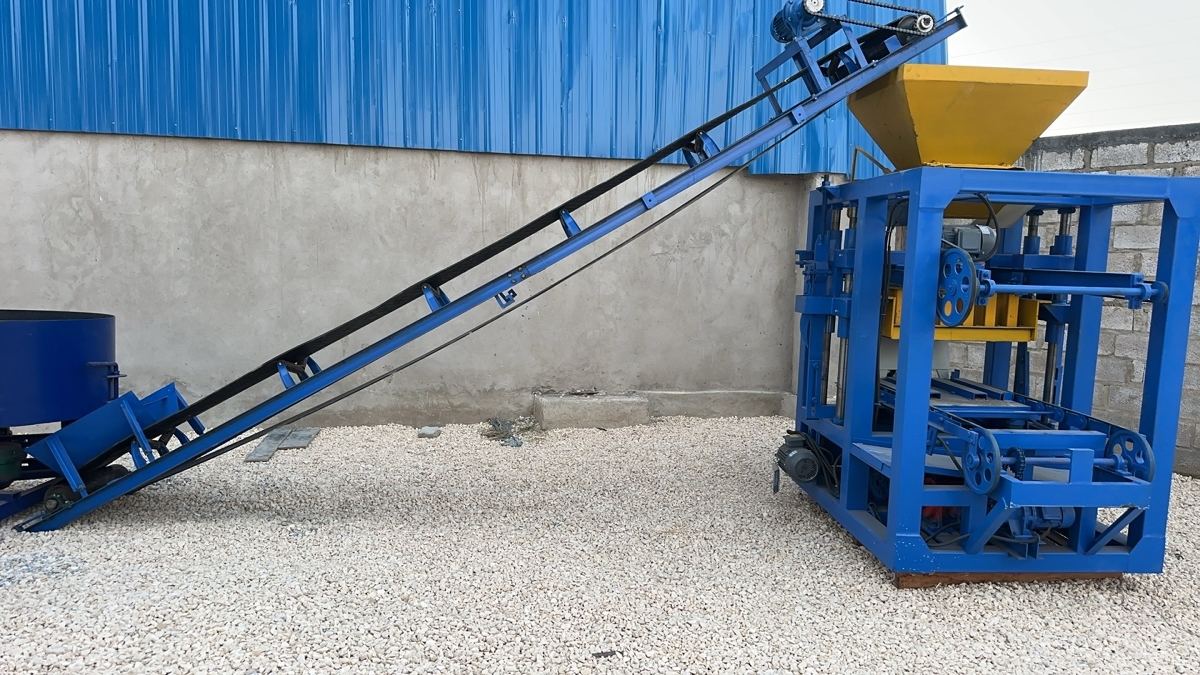

GBelt Conveyor (6m)
Transfer concrete to block machine material hopper

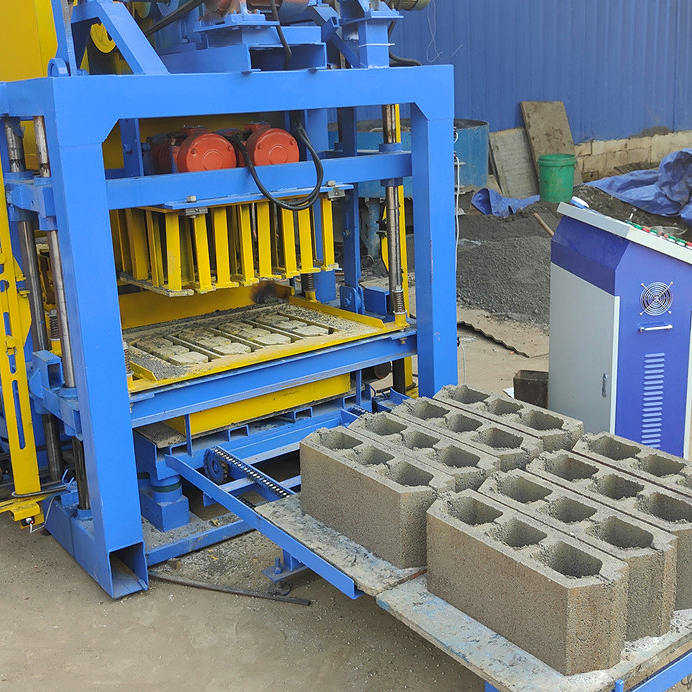

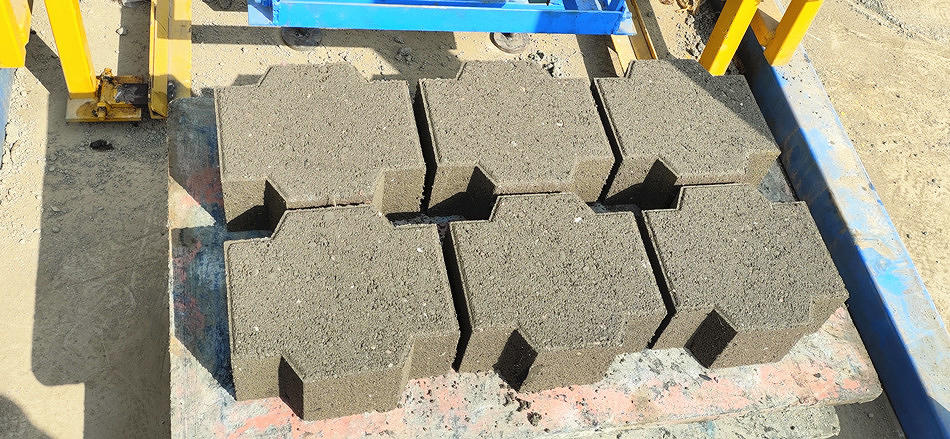

BOLA-4-25 Automatic Mechanical Block MachineProduce concrete blocks, pavement bricks, roof hourdis, curb stones

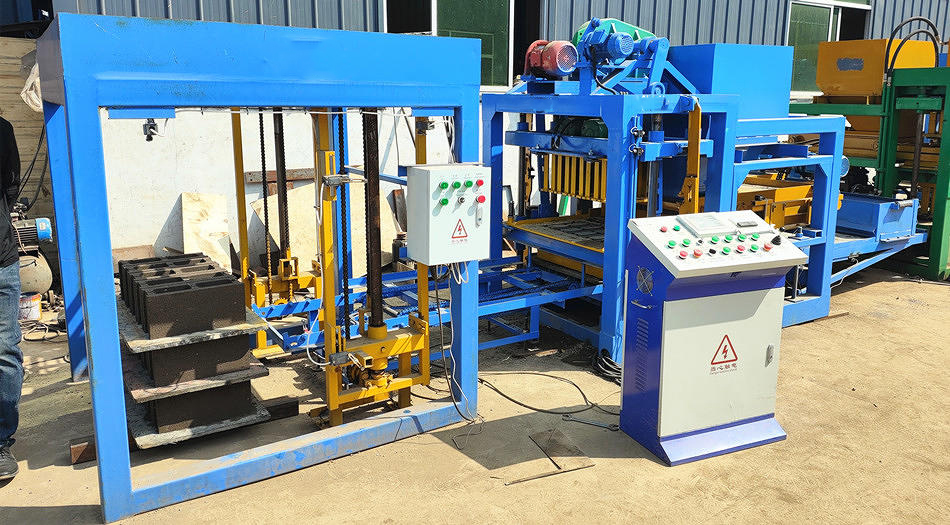

CAutomatic PLC Control BoxControl block machine work automatically
DBlock ReceiverDelivery out fresh blocks bricks from block machine to stacker
EStackerStack 3-4 pallets fresh blocks automatically
FManual TrolleyCarrying pallets blocks to curing area
Model No.                                                                 OLA-4-25 (Automatic mechanical)
Forming Cycle25 Second
Vibration Frequency
4200-4600r/min
Vibration Force
45-55KN
Pallet Size880-550-20mm
Total Power17.85KW
Workers4-6 workers
Workshop Size (Min.)15m Length, 4m Width, 4m Height
Block Machine Size3800mm(L)-1850mm(W)-2300mm(H)
Host Block Machine Weight2600 KGS
JQ500 Mixer Capacity
500L (One bag 50kg cement mixing a time)
Generator50KW
